NVIDIA TX-1 的零拷贝(Zero Copy)和分页锁定内存(Pinned Memory)

发表于 分类于 阅读次数：

公司发的圣诞礼物被一个自以为是的胖女人拿走了，不开心

众所周知GPGPU的性能瓶颈为PCI-E传输速度，数据传输时会导致运算资源闲置。因此NVIDIA发明了一个很牛逼的技术Zero Copy，它把主机内存直接映射到GPU内存上，在GPU需要数据时直接从主机内存寻找，隐式的传输到GPU中。还有另一个技术叫Pinned Memory，会在产生一个不会被分页的内存，这块内存不会被交换到磁盘的虚拟内存上，内存地址也不会被重新定位，因此，相比普通的Pageable Memory有更高的速度。使用Pinned Memory是一定会提高性能的，不过也需要适当使用，否则太多Pinned Memory会把Host Memory给挤爆了（因为它不会分页到虚拟内存去）。
图1 Pageable 和 Pinned 的区别

0x00 Zero Copy

对于普通的GPU使用Zero Copy以后，读取的数据速度限制为PCI-E的速度，所以不适用于频繁读取数据的程序，直到 NVIDIA TX-1（TK-1）的出现。在TX-1中，CPU/GPU共享memory（如图2 Integrated GPU，图3 更详细的展示了TX-1 的架构），使用Zero Copy的速度与cudaMalloc开辟的内存的速度一样！在这种情况下，Zero Copy会完全节省掉内存传输时间，特别对于流媒体的应用效果显著。

图2 Discrete GPU, Integrated GPU

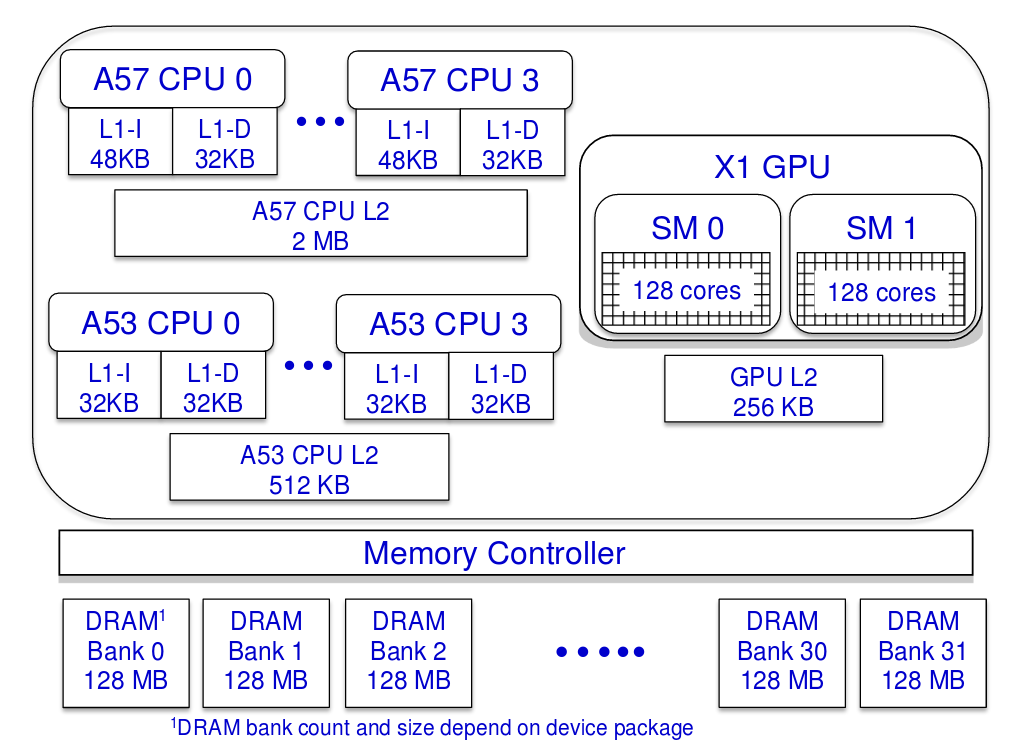

图3 TX-1 架构

但是事情真的像我们想像中的这么完美吗？

Zero Copy不通过GPU缓存直接从内存中读取数据（图4），没有缓存的后果显而易见，有些时候（比如反复读取同一块数据）反而会导致性能下降。来自nvidia devtalk的帖子[1,2]解释了这个问题，文献[3,4]做了详细实验。

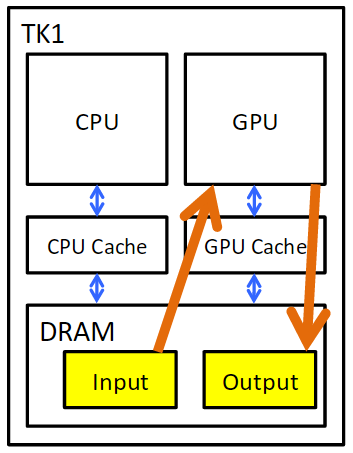

图4 TX-1 zero copy

0x01 Zero Copy 的 CUDA 实现

1.标准的CUDA Pipeline：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
// Host Arrays
float* h_in  = new float[sizeIn];
float* h_out = new float[sizeOut];

//Process h_in

// Device arrays
float *d_out, *d_in;

// Allocate memory on the device
cudaMalloc((void **) &d_in,  sizeIn ));
cudaMalloc((void **) &d_out, sizeOut));

// Copy array contents of input from the host (CPU) to the device (GPU)
cudaMemcpy(d_in, h_in, sizeX * sizeY * sizeof(float), cudaMemcpyHostToDevice);

// Launch the GPU kernel
kernel<<<blocks, threads>>>(d_out, d_in);

// Copy result back
cudaMemcpy(h_out, d_out, sizeOut, cudaMemcpyDeviceToHost);

// Continue processing on host using h_out

零拷贝的CUDA pipeline：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
// Set flag to enable zero copy access
cudaSetDeviceFlags(cudaDeviceMapHost);

// Host Arrays
float* h_in  = NULL;
float* h_out = NULL;

// Process h_in

// Allocate host memory using CUDA allocation calls
cudaHostAlloc((void **)&h_in,  sizeIn,  cudaHostAllocMapped);
cudaHostAlloc((void **)&h_out, sizeOut, cudaHostAllocMapped);

// Device arrays
float *d_out, *d_in;
// Get device pointer from host memory. No allocation or memcpy
cudaHostGetDevicePointer((void **)&d_in,  (void *) h_in , 0);
cudaHostGetDevicePointer((void **)&d_out, (void *) h_out, 0);

// Launch the GPU kernel
kernel<<<blocks, threads>>>(d_out, d_in);

// No need to copy d_out back
// Continue processing on host using h_out

0x02 Zero Copy 的 OpenCV 实现

1. OpenCV 3

OpenCV3可以使用cv::cuda::HostMem来使用ZeroCopy和Pinned Memory，

  • PAGE_LOCKED: sets a page locked memory type used commonly for fast and asynchronous uploading/downloading data from/to GPU.
  • SHARED: specifies a zero copy memory allocation that enables mapping the host memory to GPU address space, if supported.
  • WRITE_COMBINED: sets the write combined buffer that is not cached by CPU. Such buffers are used to supply GPU with data when GPU only reads it. The advantage is a better CPU cache utilization.

详细参见：cv::cuda::HostMem Class Reference

2. OpenCV 2

Regular cv::gpu::GpuMat
cv::gpu::CudaMem with ALLOC_ZEROCOPY

从这抄了一段代码https://github.com/Error323/gpumat-tk1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
#include <iostream>
#include <vector>
#include <opencv2/opencv.hpp>
#include <opencv2/gpu/gpu.hpp>

#include "timer.h"

#define ITERS 100

using namespace cv;
using namespace std;

void compute(gpu::GpuMat &in, gpu::GpuMat &bgr, gpu::GpuMat &out)
{
  cv::gpu::demosaicing(in, bgr, cv::COLOR_BayerBG2BGR);
  cv::gpu::resize(bgr, out, out.size());
}

int main(void)
{
  int w = 4608;
  int h = 3288;
  int wnew = 800;
  int hnew = 600;

  Mat in(h, w, CV_8UC1);
  Mat out(hnew, wnew, CV_8UC3);
  gpu::GpuMat d_in;
  gpu::GpuMat d_bgr(h, w, CV_8UC3);
  gpu::GpuMat d_out(hnew, wnew, CV_8UC3);

  double t = GetRealTime();
  for (int i = 0; i < ITERS; i++)
  {
    in.setTo(i);
    d_in.upload(in);
    compute(d_in, d_bgr, d_out);
    d_out.download(out);
  }
  cout << "Old Time: " << GetRealTime()-t << " (" << cv::sum(out)[0] << ")" << endl;

  gpu::CudaMem c_in(h, w, CV_8UC1, gpu::CudaMem::ALLOC_ZEROCOPY);
  gpu::CudaMem c_out(hnew, wnew, CV_8UC3, gpu::CudaMem::ALLOC_ZEROCOPY);
  d_in = c_in.createGpuMatHeader();
  d_out = c_out.createGpuMatHeader();
  out = c_out.createMatHeader();

  t = GetRealTime();
  for (int i = 0; i < ITERS; i++)
  {
    d_in.setTo(i);
    compute(d_in, d_bgr, d_out);
  }
  cout << "New Time: " << GetRealTime()-t << " (" << cv::sum(out)[0] << ")" << endl;


  return 0;
}

0x03 参考

[1]OpenCV Performance TK1
[2]Regarding Usage of Zero Copy on TX1 to improve performance
[3]PPT: General purpose processing using embedded GPUs: A study of latency and its variation
[4]An Evaluation of the NVIDIA TX1 for Supporting Real-timeComputer-Vision Workloads
